DAP SCREAMING EAGLE SXE 3RD GEN 62/68/12 T3 GATED – Diesel Auto Power


Categories: ,

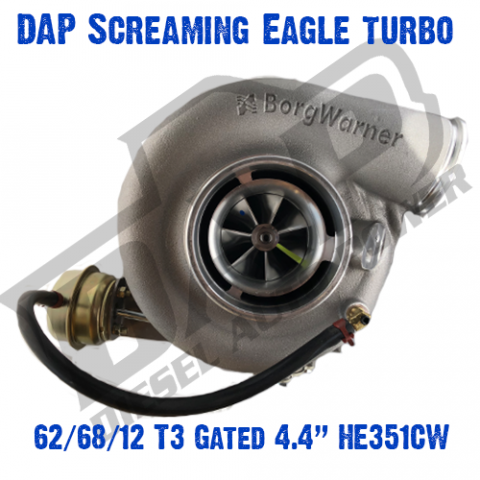

DAP Screaming Eagle SXE 62/68/12 T3 Gated is one of our most popular 3rd Gen turbocharger upgrades. The 68mm turbine wheel and 12cm housing makes it a great fit for 450-600HP applications that need to daily drive and tow. Built from Borg Warner SX-E units, it comes standard with a Forged Mill Wheel (FMW) and 360-thrust bearing for increased durability and longevity. Modified in-house for fitment in the 3rd Gen application it uses a machined compressor outlet and 90* elbow to mate with your factory intercooler piping. This turbo will spool slightly slower than a factory HE351CW due to the larger exhaust side, but with proper tuning it makes a great option for managing EGT’s while towing.

This turbo will support 600HP on a commonrail 5.9L Dodge depending on elevation and turbine choice and flows approximately 77 lbs/minute.

Injector recommendations
0-75HP Injectors with ECM tuning/ Programmer

Accessories Included:
• 2.75″ Elbow with Tight Radius for 2003-2018 Dodge Cummins
• Clamp and O-ring for Tight Radius Elbow
• Overboost Resistor
• Oil Inlet Fitting and Drain Gasket
• 2x 3/8 Oil Drain Mounting Bolts
• 2x 3/8″ Turbo/Manifold Mounting bolts
• 2x 3/8″ nuts
• T3 or T4 Turbo/Manifold Gasket
