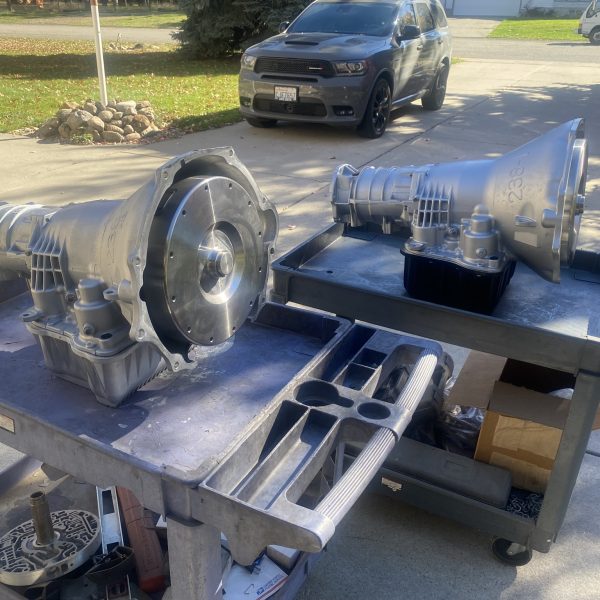

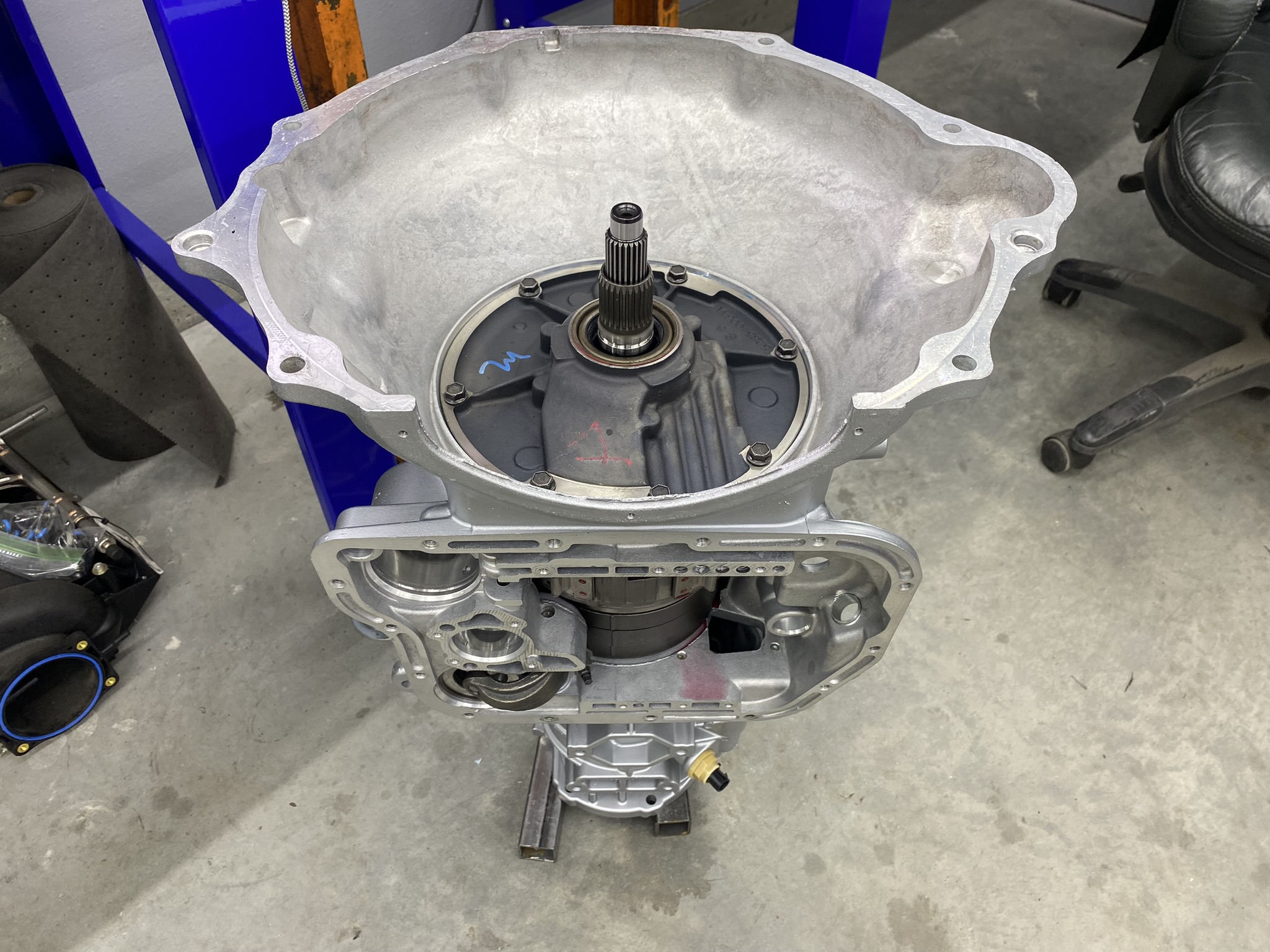

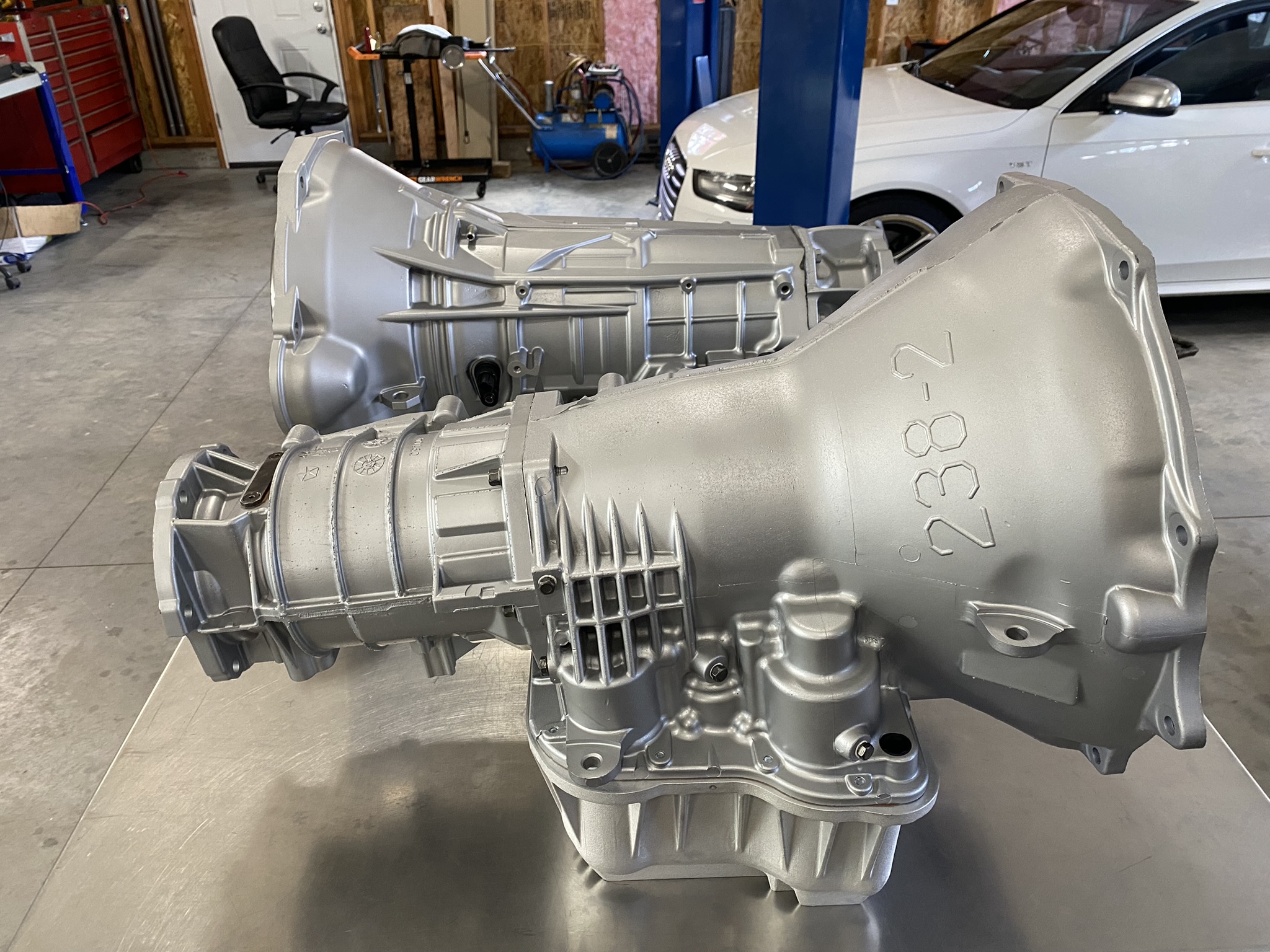

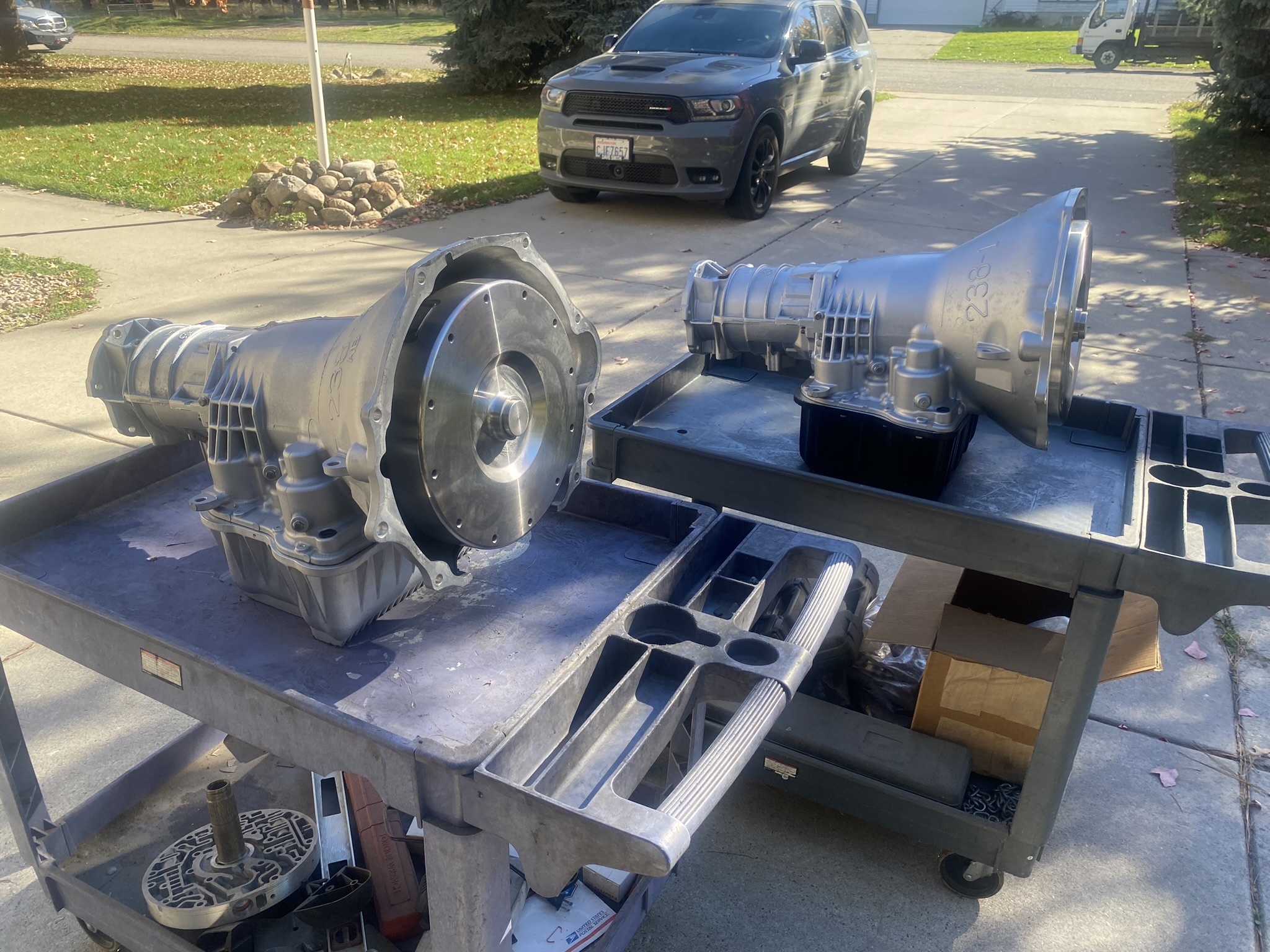

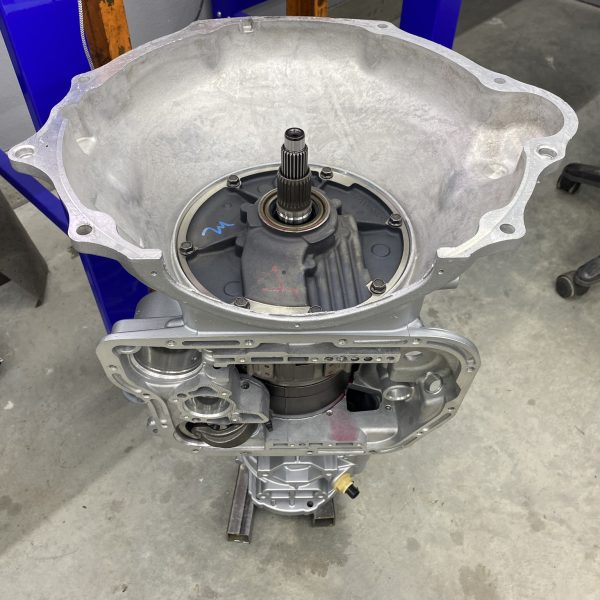

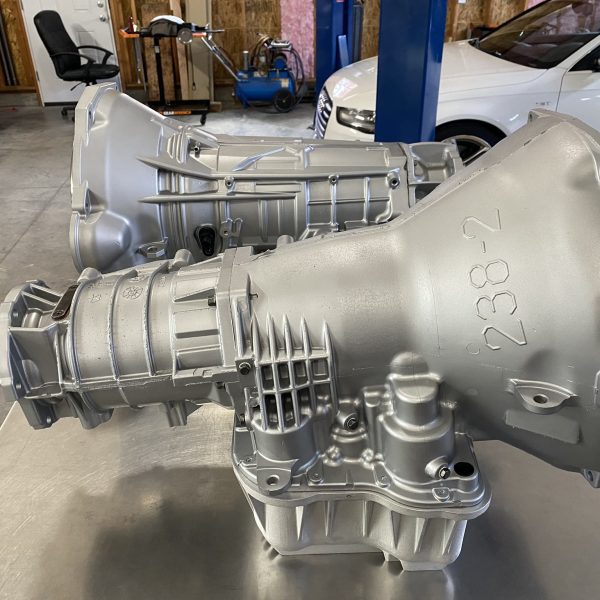

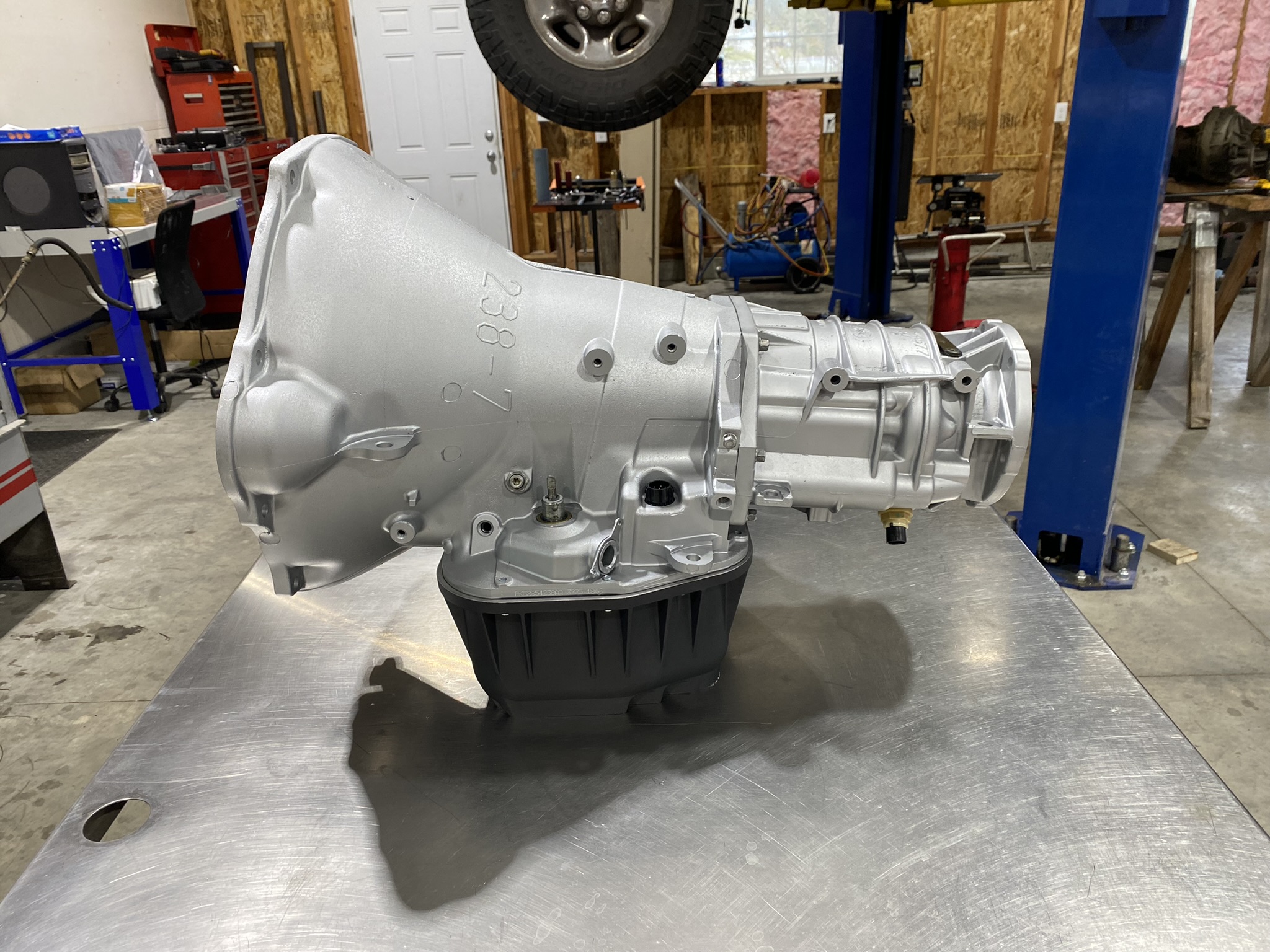

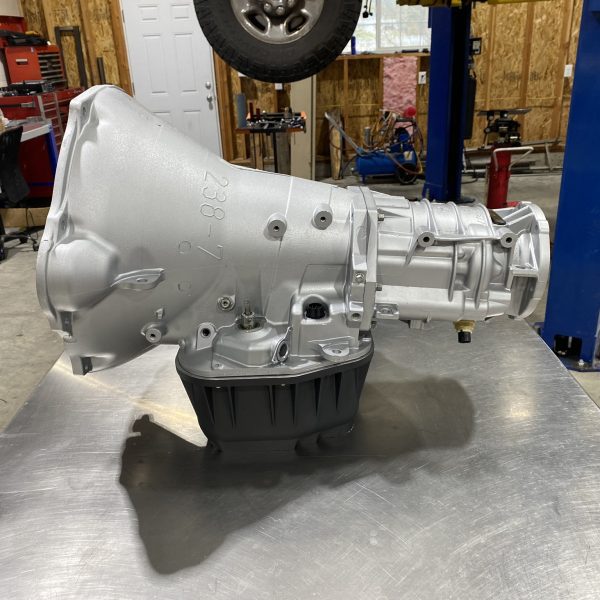

Stage 3 48RE by Dynamic Transmission

STAGE 3 48RE – 650 hp rated

-Goerend billet triple disc torque converter (multiple stall speeds available))
-Billet steel front cover, triple disc clutch assembly, custom billet low stall stator

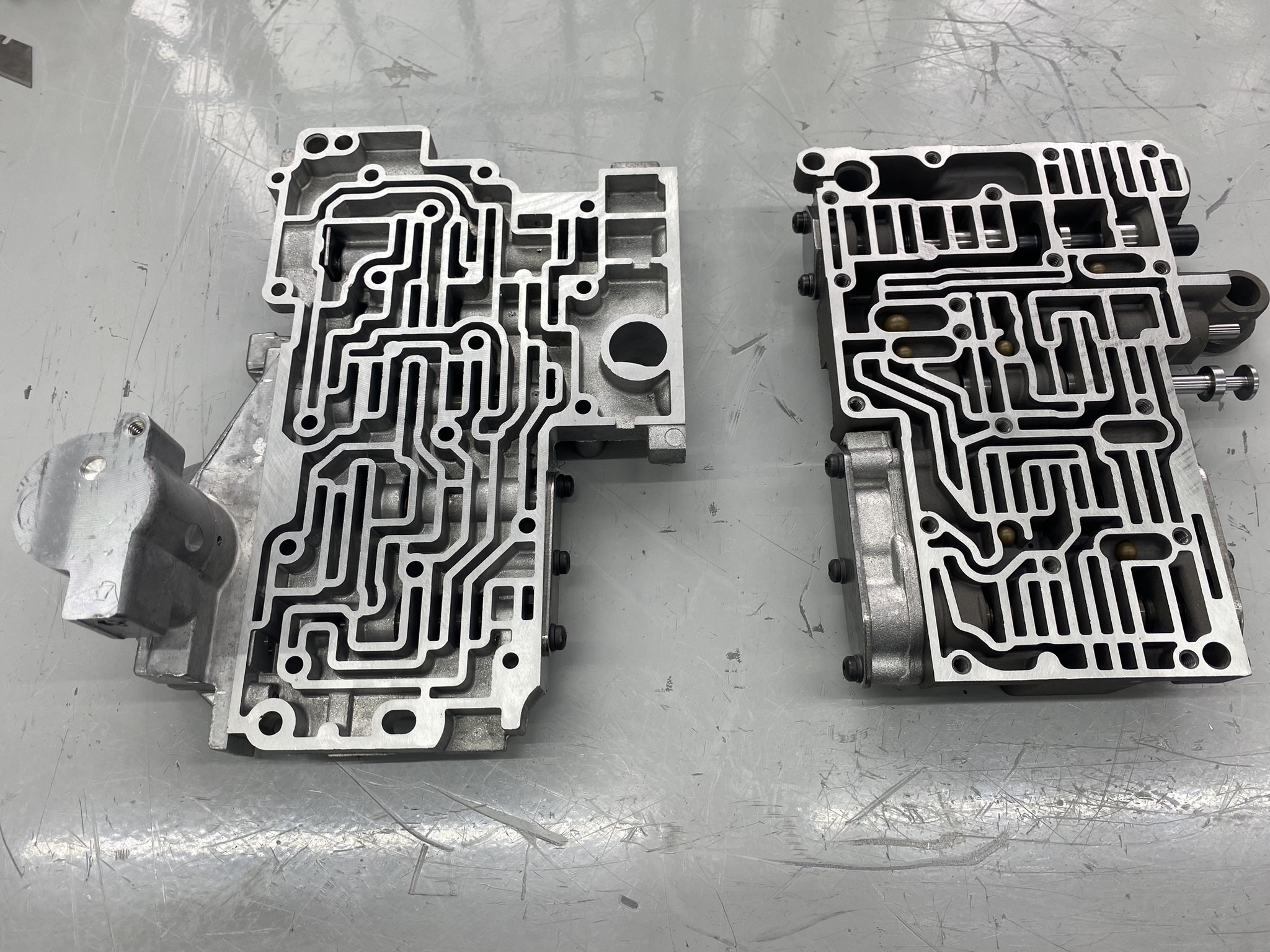

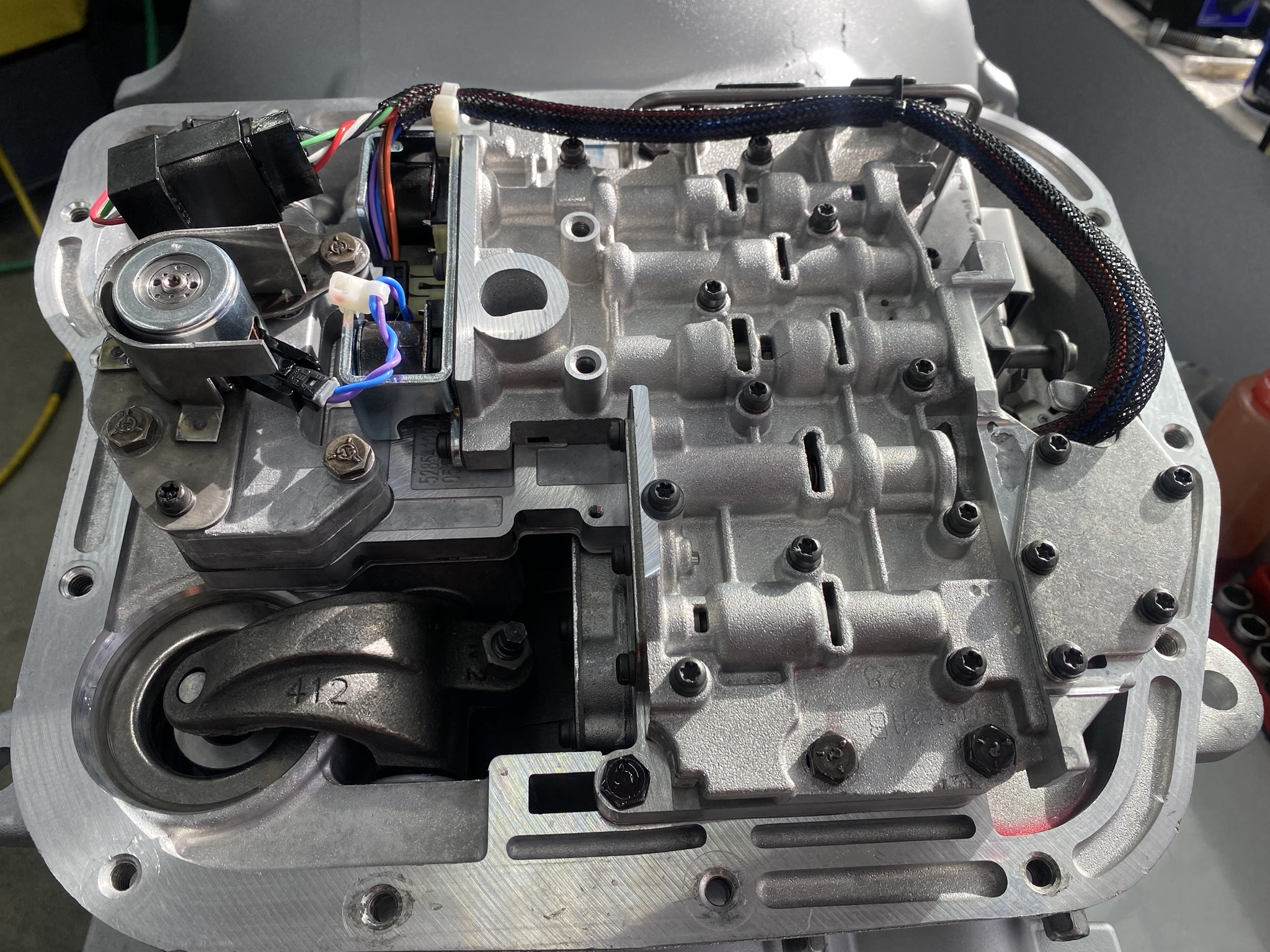

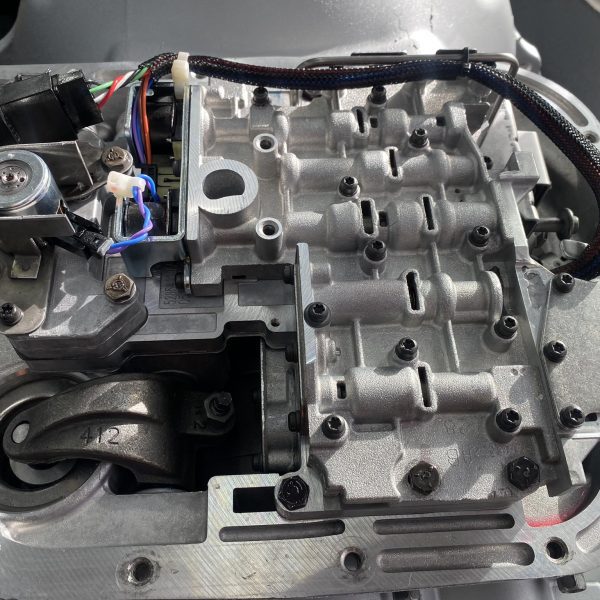

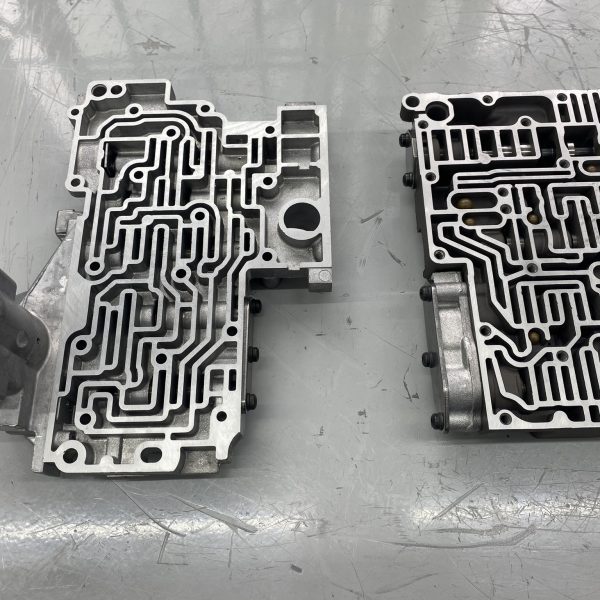

-Dynamic “Quantum” high-pressure valve body assembly (w/electronics)
– HD/towing or performance shift calibrations.
-Borg Warner HD governor pressure solenoid, early metal transducer (w/adapter harness for temp
sensor)
-New OD/TCC solenoid set (w/internal wiring harness and pass-through connector)
-New OEM output speed sensor.
-TCS 300 maraging billet input shaft

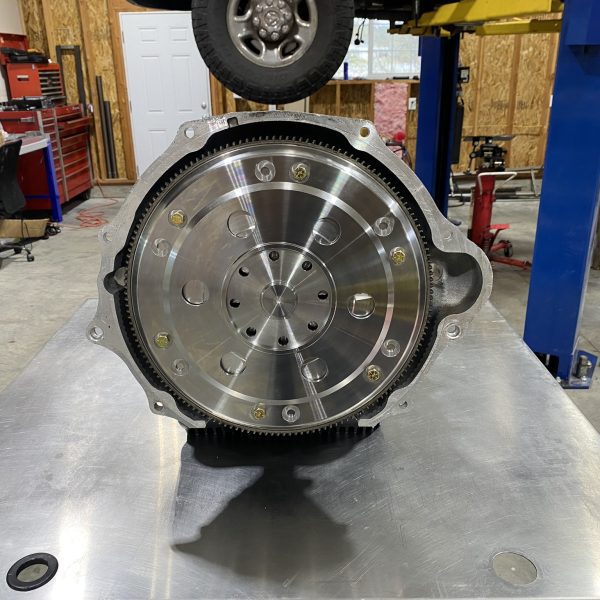

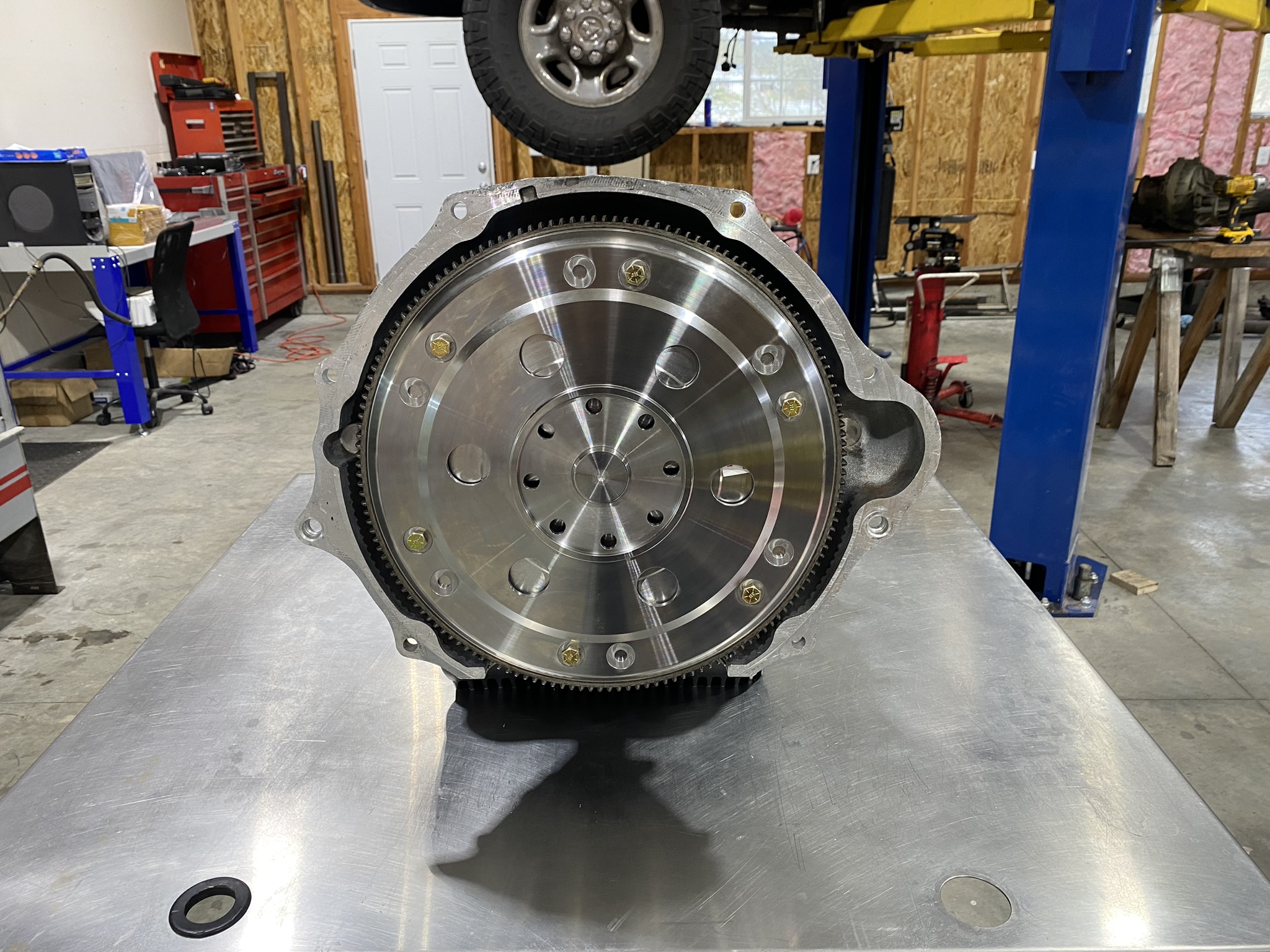

-Goerend billet flexplate
-Deep aluminum transmission pan
-Raybestos GPZ frictions throughout
-7 disc direct clutch stack (two additional discs over stock – GPZ frictions)
-Raybestos Pro Series intermediate band
-OEM low/reverse band
-TCS billet 4.2:1 band lever, strut and anchor set
-TCS billet intermediate servo set
-TCS billet accumulator piston
-Sonnax billet low/reverse band servo
-New Borg Warner low and OD roller clutches
-New output bearing and OD thrust bearings (w/updated sun gear thrust plate)
-New OD brake snap ring

OPTIONS:
-TCS billet output shaft
-Sonnax billet output shaft

WARRANTY:

-24 Months
-Unlimited Miles
*All warranty service/communication will be handled directly with DDP

CORE CHARGE REQUIRED:

Core charge of $1800 will be required.

SHIPPING:
Shipping costs will be deducted from your core charge prior to refund.
