Stage 1 48RE by Dynamic Transmission

STAGE 1 48RE – 400 hp rated

DPC billet single disc torque converter (low stall is standard)
-Billet steel front cover, oversized single disc clutch assembly, custom low stall stator

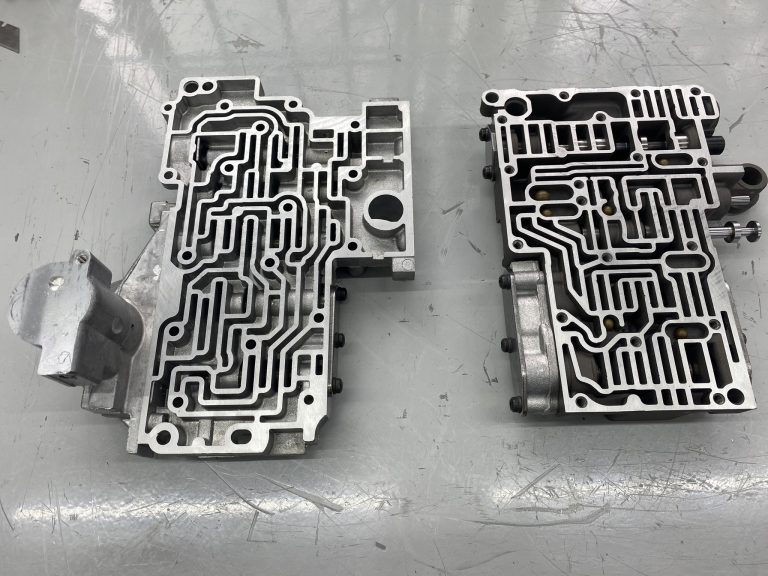

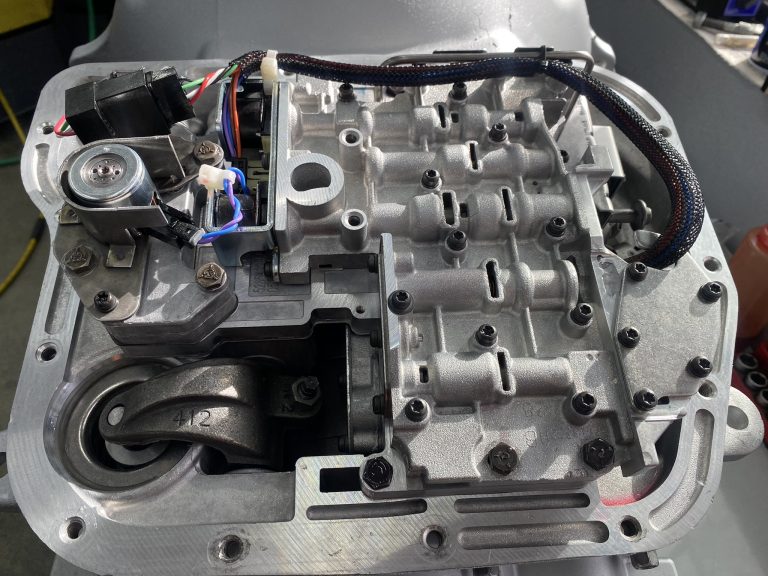

Dynamic “Quantum” valve body assembly (w/electronics)
-Borg Warner HD governor pressure solenoid, early metal transducer (w/adapter harness for temp
sensor)
-New OD/TCC solenoid set (w/internal wiring harness and pass-through connector)
-New OEM output speed sensor.
-New OEM transmission pan
-OEM high-energy frictions throughout
-5 disc direct clutch stack (stock clutch count)
-Borg Warner intermediate band
-OEM low/reverse band
-Goerend billet 3.8:1 band lever, strut and anchor set
-Sonnax billet intermediate servo cover
-Goerend billet accumulator piston
-New Borg Warner low and OD roller clutches
-New output bearing and OD thrust bearings (w/updated sun gear thrust plate)
-New OD brake snap ring

OPTIONS:

-Deep aluminum transmission pan

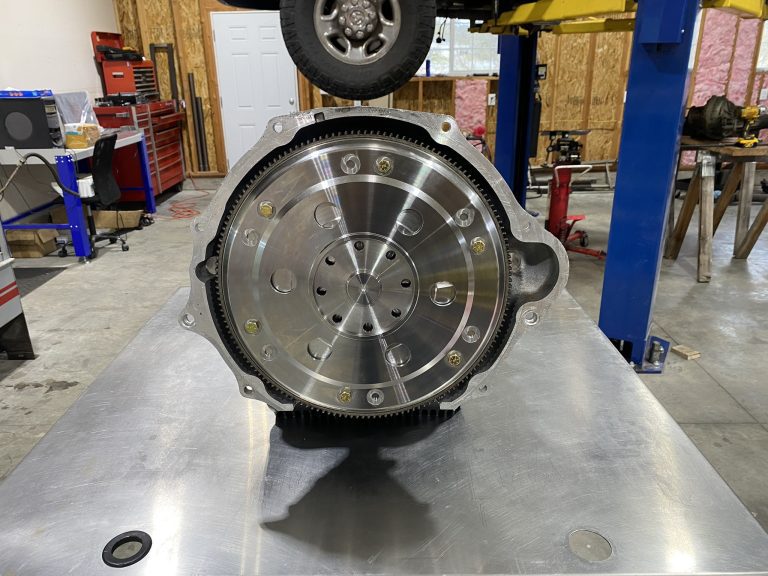

-HD stamped steel flexplate

WARRANTY:

-24 Months
-Unlimited Miles
*All warranty service/communication will be handled directly with DDP

CORE CHARGE REQUIRED:

Core charge of $1800 will be required.

SHIPPING:
Shipping costs will be deducted from your core charge prior to refund.
